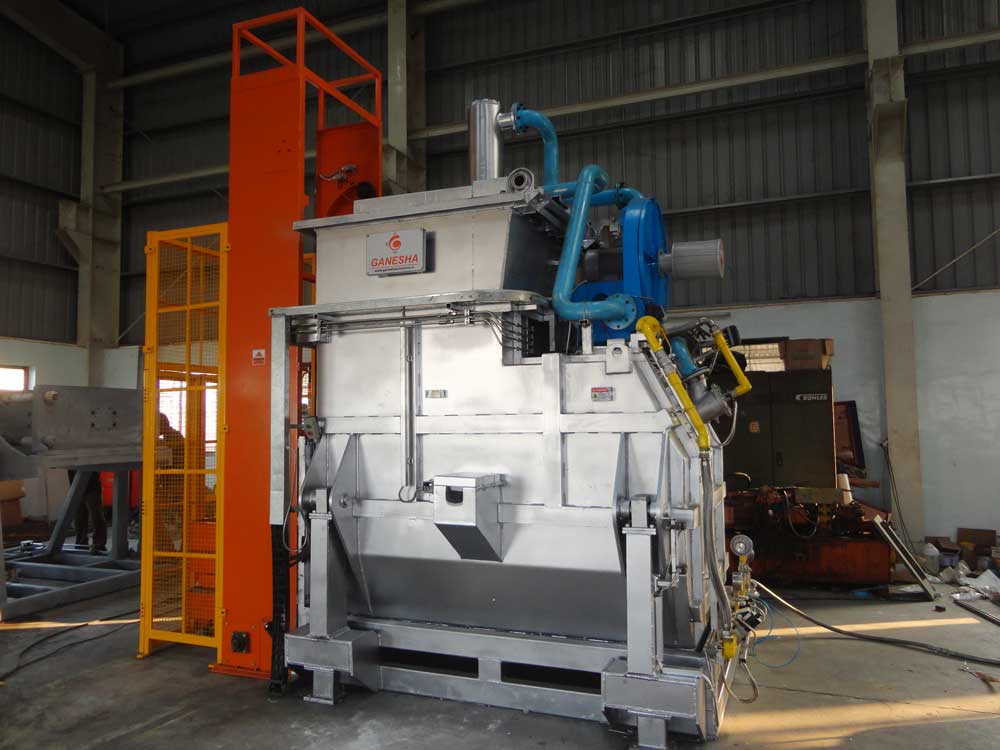

Aluminum Melting Furnace

Versions

• Tower Type Melter (Side By Side Layout)
• Melting Cum Holding Cum Pouring (Suitable For Auto Pouring)
• Single Chamber Melting Cum Holding (Skelner Type)

Key Specifications

Side by side deisgn, monolythick lining (imported castables) with multi-layer insulation to enhance max use of thermal mass to control fuel economy, kromschroder (germany) heating system with fully ratio controlled firing system interfaced to sense each & every count of metal teperature & level, auto ingot loading system, parameter selection & monitoring through industril plc & 10’’ one touch smart interface system.

Model	TMS 750/1250	TMS 1000/1500	TMS 1500/2000	TMS 2000/3000
MELT RATE (Kg/Hr)	750	1000	1500	2000
METAL TAPPING	TILTING/PLUG TAP	TILTING/PLUG TAP	TILTING/PLUG TAP	TILTING
RAW MATERIAL CHARGING	AUTO LOADER	AUTO LOADER	AUTO LOADER	AUTO LOADER
