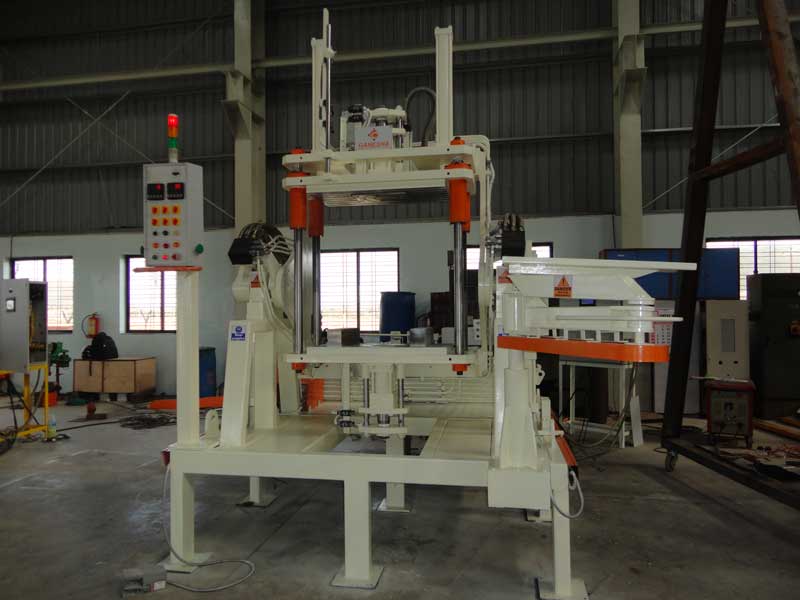

Gravity Die Casting Machine

Versions

• Tilting Type – 0 To 90 Deg
• Tilting Type -- -45 To 90 Deg (Negative Tilting)
• Stationary Type (With Core Sequencing)
• Universal Gdc With 4/6 Sildes Suitable For Cyl Head Castings

Key Specifications

Variable tilting speed at any degree with electro-hydraulic proportional control , double die claping cylinder, wide range of process selection & monitoring through 7’’ one touch smart display.

Model	TG58	TG69	TG812	TG1515	TG1518
PLATEN SIZE	500 x 800	600 x 900	800 x 1200	1500 x 1500	1500 x 1800
DAYLIGHT CLOSE/OPEN	300/700	300/700	400/900	500/1100	600/1300
LOOSE CORE	N/A	1	1	2	2
OPTIONAL	SWING ARM MANUAL CATCHER	SERVO BASED HYDRAULIC SYSTEM	AUTO DIE CLAMPING	AUTO CASTING CATCHER/REMOVAL	FORCED DIE COOLING SYSTEM
