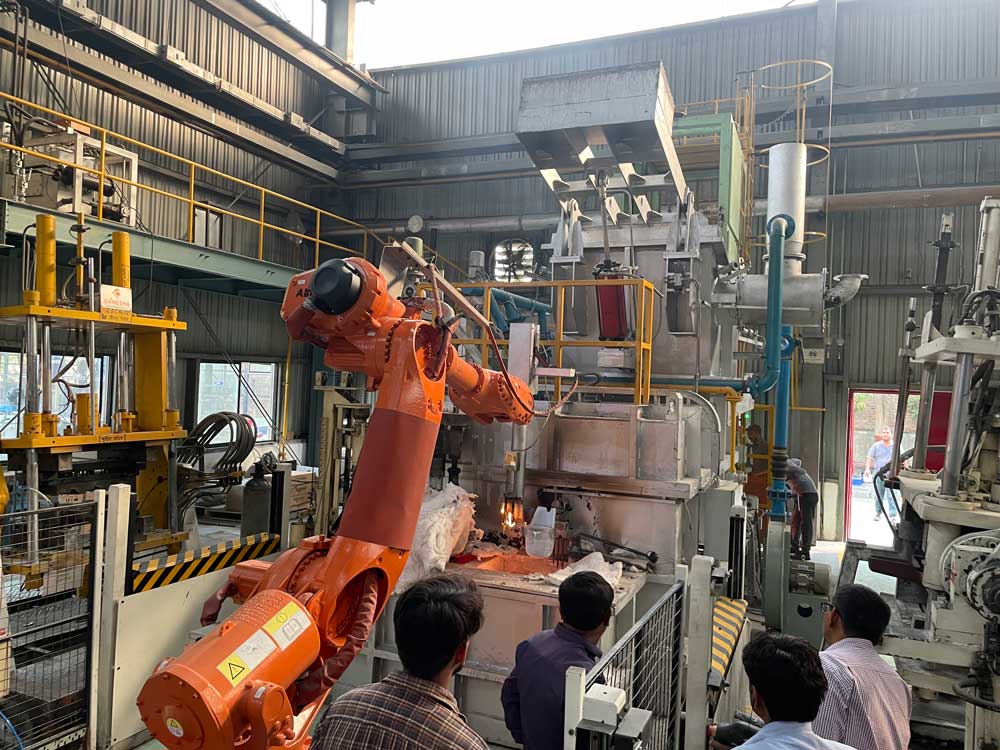

Automated Metal Transfer & Pouring System

Versions

• Gantry Type Auto Pourers
• Floor Mounted Rail Type Auto Ladlers
• Single Beam Ladlers For Hpdc Machines

Key Specifications

Servo driven high torque high speed maulti axis robots driven through linear motion tecnology, with real time feed back & process control , wide range of process selection & monitoring through industril plc & 10’’ one touch smart interface system.

Model	G34	G35	G44	G45	G31 (HPDC)
SIZE	3 AXIS 4 STAION	3 AXIS 5 STAION	4 AXIS 4 STAION	4 AXIS 5 STAION	3 AXIS 1 STAION
LADLE CAPACITY (Kg)	2-20	2-15	2-20	2-15	2-25
MAX SPEED X-AXIS	0.5 m/s	0.6 m/s	0.5 m/s	0.6 m/s	0.3 m/s
